Description

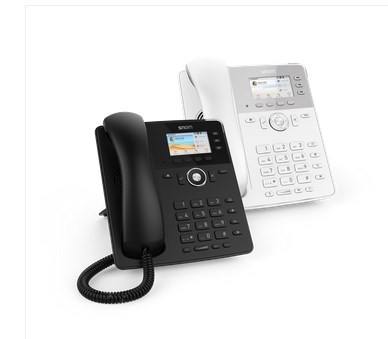

The Snom D717 is a professional desktop phone and a cost-effective entry-level device into the world of VoIP telephony. An advanced IP phone, the D717 features a high-resolution colour display that is second to none in its price segment and also features a unique and innovative brightness and proximity sensor.
The sensor reacts as soon as the user's hand nears the display or the function keys of the IP phone and then displays frequently used features and called numbers. In addition, the sensor ensures that the brightness of the telephone display is always adjusted to the current lighting conditions in the room, reducing the carbon footprint of each device.
In addition to the high-resolution colour display, the phone also has multi-colour LED function keys, an integrated gigabit switch and a USB port ensuring that the complete range of connectivity options are available.
| Specifications | |
| Features | Protocols |
| 6 SIP identities / accounts | SIP (RFC3261) |
| XML browser | DHCP, NTP |
| Call lists for dialed, received, missed calls | HTTP / HTTPS / TFTP |
| Local directory with 1000 entries | LDAP (Directory) |
| Multiple language support | Dual Stack IPv4 / IPv6 |
| DTMF in-band / out-of-band / SIP-INFO | User Interface |
| Interoperable with all major IP PBX platforms | Localization (language, time, dial tone) |
| Call Features | Red LED for call indication / message waiting |
| Speed dialing | 4 context-sensitive keys |
| URL dialing | 3 programmable line / function keys with multicolour LEDs |
| Local dial plan | Dedicated keys for: Message, DND, Directory, Menu, Transfer, Hold, Page |
| Automatic redial on busy | Audio keys with LED indication: Mute, Speakerphone, Headset |
| Call completion (busy/unreachable) | Volume key |
| Caller identification | 5-way navigation key |
| Call waiting | OK and Cancel keys |
| Call blocking (deny list) | Automatic backlight enabled |
| Auto answer | Security |
| Hold | 802.1X authentication and EAPOL |
| Music on hold | Transport layer security (TLS) |
| Blind and attended transfer | SRTP (RFC3711), SIPS, RTCP |
| Call forwarding | HTTPS server/client |
| 3-way conferencing on the phone | password-protected web interface |
| Extension monitoring, call pickup | VPN-support |
| Call park, call unpark | VLAN (IEEE 802.1Q) |
| Multicast paging | LLDP-MED, RTCP-XR |
| DND mode | Phone Features |
| Keyboard lock | Dimensions (approx.): 205 x 185 x 40 mm (LxWxD) w/o foot stand · 205 x 185 x 200/220 mm (LxWxD) with foot stand |
| Client matter code (CMC) | Weight (approx.): device 710g, footstand 120g |
| Unified Communications ready | Input voltage: 5Vdc (SELV) |
| Audio | Power supply: PoE or 5Vdc power adapter (1), 10 Watts |
| Codecs: · G.711 A-law, µ-law · G.722 (wideband) · G.726, G.729AB, GSM 6.10 (FR) | Handset: 4P4C |
| Built-in assignable ringtones | Headset: 4P4C Support for Snom EHS Advanced (1) |
| Comfort Noise Generator (CNG) | Hearing -Aid compatible (HAC) handset |
| Voice Activity Detection (VAD) | 1xUSB 2.0 host port, Type A |
| Setup | Environmental conditions: -ambient temperature 0°C to 35°C (32°F to 95°F) -Storage temperature -10°C to 45°C (14°F to 113°F) -Humidity 5% to 95% (non-condensing) |
| Configurable through web interface | Included in delivery: - Phone unit - Footstand -Handset with cord -Ethernet cable -Quick Start Guide |
| Provisioning: -Automatic loading of settings via HTTP/HTTPS/TFTP -DHCP Options 66/67 -Snom Redirection Service -Remote management via TR-069 / TR-111 | Colour: Black or White |
• Snom D717 White / 10933_D717.pdf) (
, 845.96 kb)
